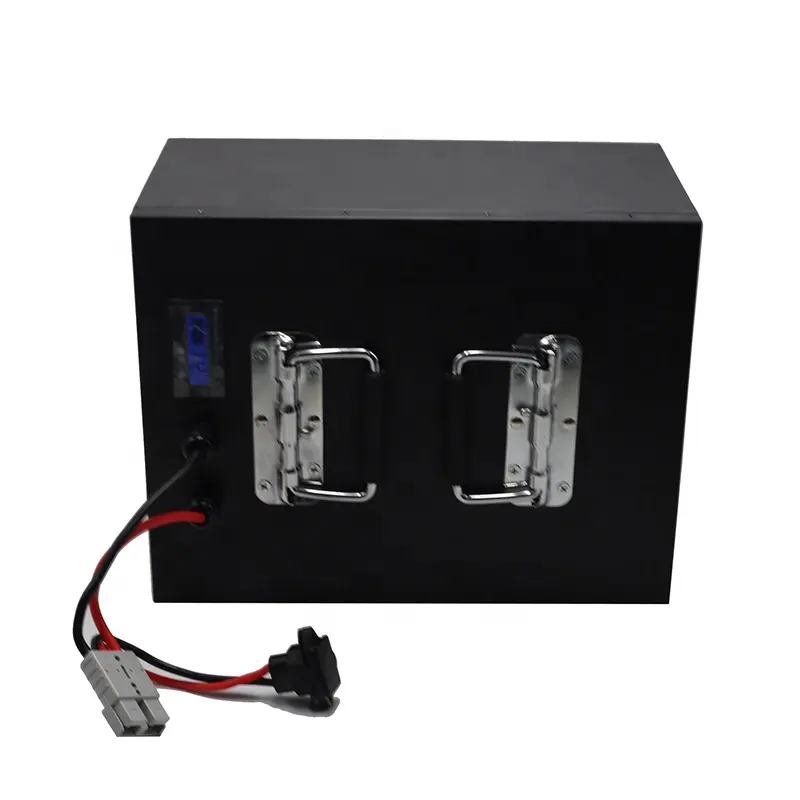

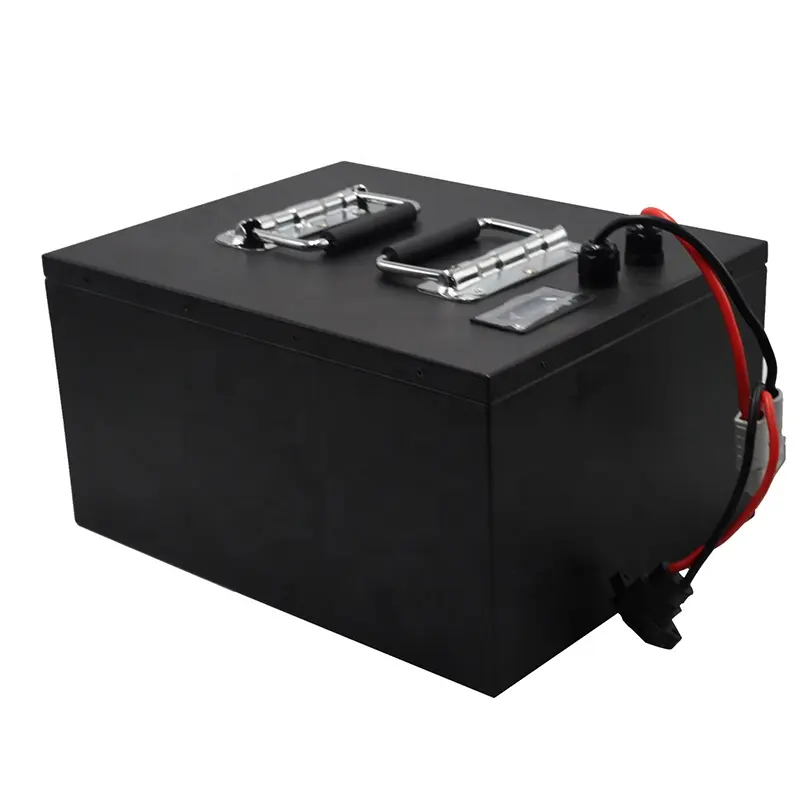

EV машинд зориулсан LiFePO4 батерейны 72v 60ah цахилгаан тээврийн хэрэгслийн батерейны лити ион багц

2023-06-06 02:13

Үзүүлэлт

Брэндийн нэр	БҮГД НЭГ ДОР
Загвар	AIN7260
Баталгаат хугацаа	5 жил
Нэрлэсэн хүчдэл	76.8V
Нэрлэсэн хүчин чадал	[email protected]/customize
Эрчим хүч	4416Wh
Дотоод эсэргүүцэл	≤50мΩ
Амьдралын мөчлөг	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Өөрөө зайлуулах	≤ 25 at сард 3,5%
Макс. Цэнэглэх хүчдэл	87.6 V
Цэнэглэх горим	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Цэнэглэх гүйдэл	30А
Макс. Цэнэглэх гүйдэл	60А байна
Гүйдлийн гүйдэл	30А
Max. discharge Continuous Current	60А байна
Хамгийн их импульсийн гүйдэл	120A(<3S）
Таслах хүчдэлийг цэнэггүй болгох	60V
Цэнэглэх температур	0 ℃ - 45 ℃ (32 ℉ - 113 ℉) @ 60 ± 25% харьцангуй чийгшил
Буулгах температур	-20 ℃ - 60 ℃ (-4 140 - 140 ℉) @ 60 ± 25% харьцангуй чийгшил
Агуулахын температур	0 ℃ - 45 ℃ (32 ℉ - 113 ℉) @ 60 ± 25% харьцангуй чийгшил
Усны тоосны эсэргүүцэл	IP55
Cell & Format	LFP  60AH 24S1P/customize
Суултын яндан	Металл хайрцаг
Хэмжээ (L * W * H * TH)	тохируулах
Жин	50kg
Терминал	M6 or Anderson or another bolt screw
Peak discharge current BMS	60А байна
High temp port. Low temp port.	over charge port. over discharge port.
Цэнэглэх арга	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Гэрчилгээ	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Сануулах

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Програм

Манай үйлдвэр

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Баглаа боодол ба ачилт

Сав баглаа боодол

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Хүргэлт

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Асуулт

А: Би яаж төлөх ёстой вэ? Төлбөрийн ямар хэлбэрийг та хүлээж авдаг вэ?
A: T/T, PayPal, Western Union.

А: Дээжийн захиалгыг хүлээн авах боломжтой юу?
Х: Тийм ээ, ихэнх батерейны хувьд чанарын туршилтын дээж захиалга боломжийн бөгөөд хүлээн авах боломжтой байдаг.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

А: Таны баталгаа юу вэ?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Батерейны гүдгэр/гагнуур гэх мэт учирсан хохирлын хувьд, цэнэглэхээс үүдэлтэй хамгаалалтын хамгаалалтгүй зай.
